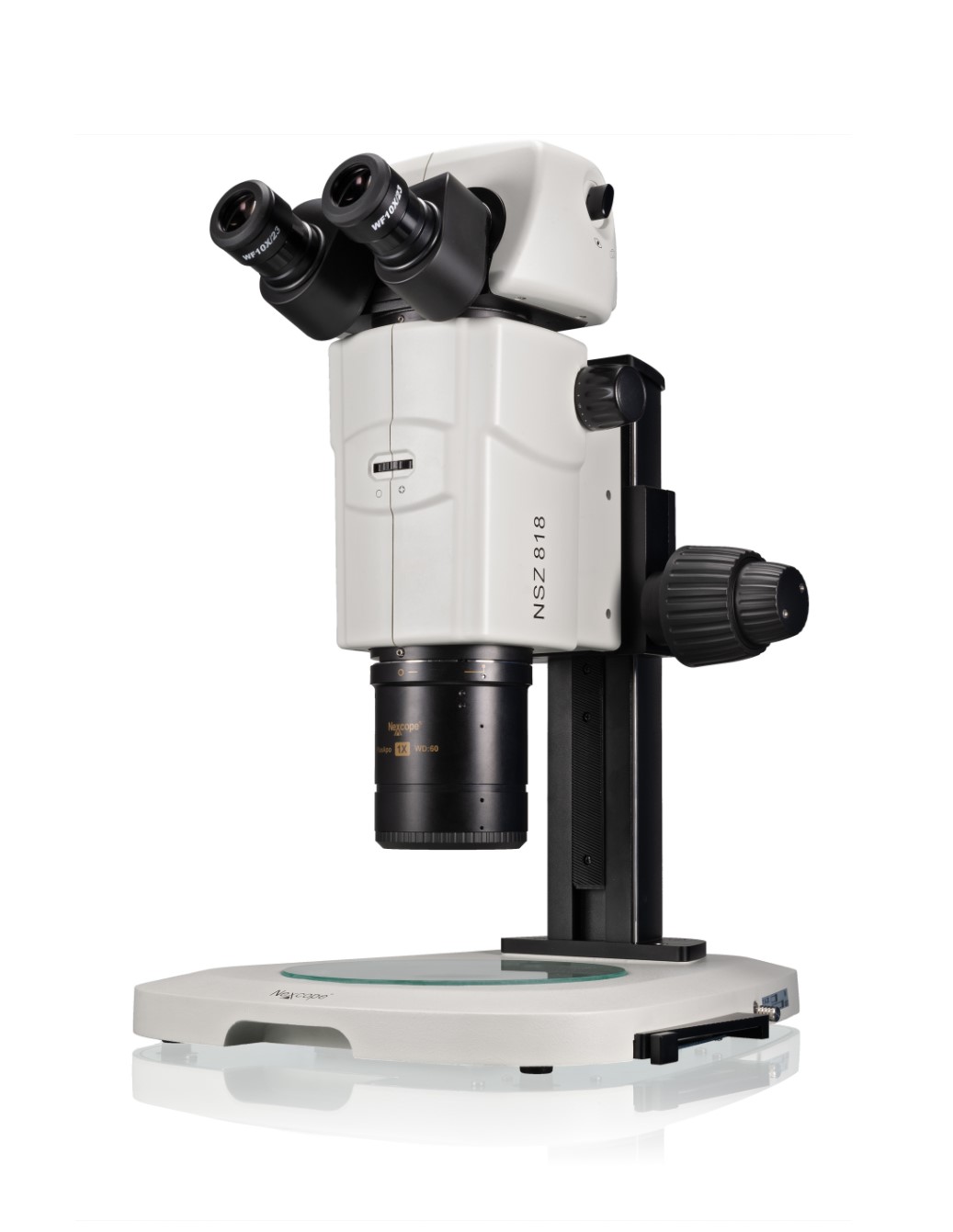

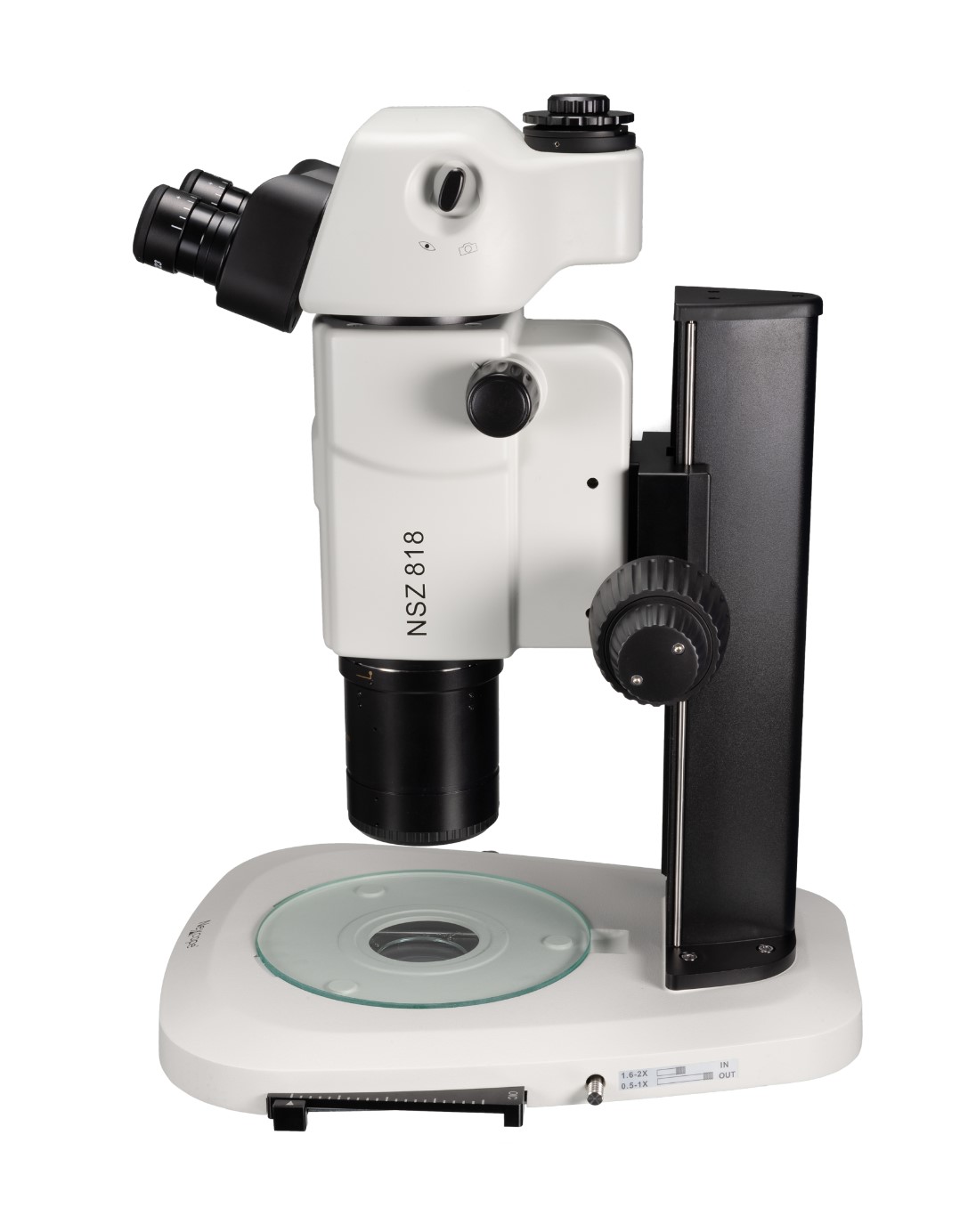

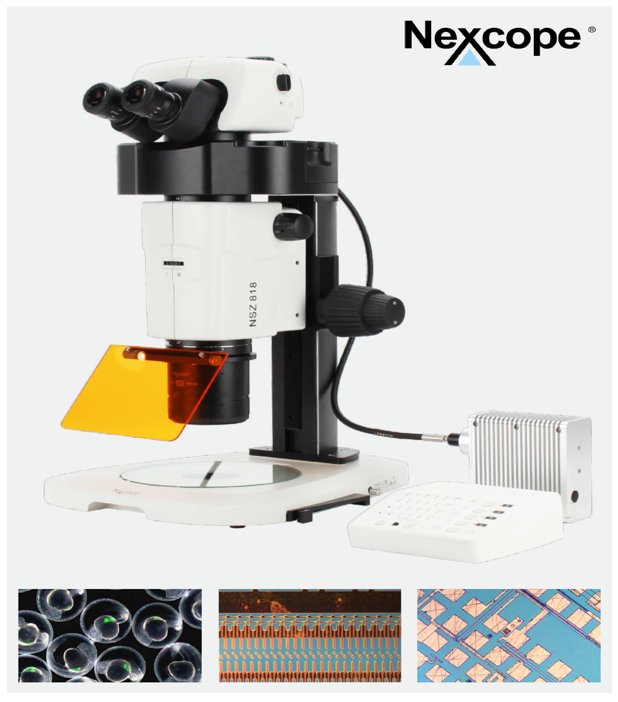

NEXCOPE NSZ818

RESEARCH APOCHROMATISM PARALLEL-OPTICS STEREO MICROSCOPE

NEXCOPE NSZ818 has an infinity corrected parallel optical system. It allows 3D observations with high resolution and high contrast.

1:18 CONTINUOUS ZOOM RATIO

0.75X-13.5X magnification objective lens, zoom ratio of 1:18, no need to exchange the objective lens can be observed at one time the whole and fine parts of the sample.

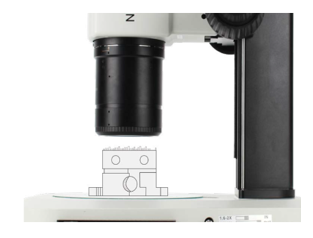

OBSERVE HIGH, THICK AND IRREGULAR SAMPLES TO AVOID COLLISIONS

Industrial samples, such as circuit boards, are often uneven and very heavy, NSZ818 in the case of ensuring high magnification, to ensure the 60mm working distance, compared with the traditional microscope greatly increased the distance between the sample and the lens, reduce the collision

during observation, both to protect the microscope, but also to protect the sample.

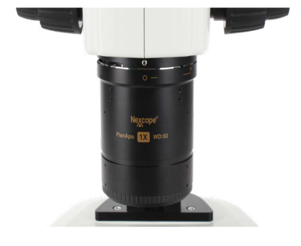

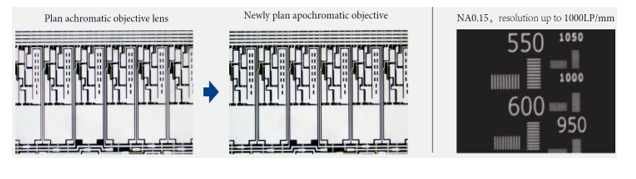

PLAN APO OBJECTIVE

The newly designed 1X PLAN APO large objective lens brings excellent

resolution and chromatic aberration correction capabilities, more realistic

imaging, high NA, resolution up to 1000LP/mm.

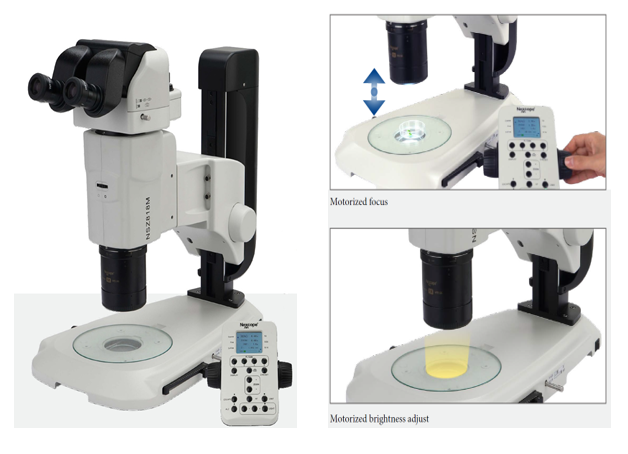

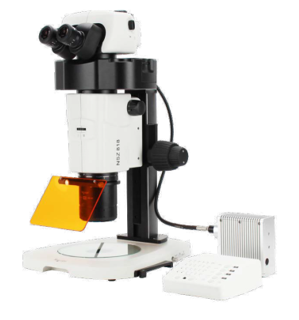

CONVENIENT MOTORIZED CONTROL

Multifunctional controller to achieve a variety of motorized control functions, Z-axis focusing, power switching, light intensity control, fluorescence filter block switching (in design), automatic focusing (in design) and other functions, so that the operation process is more convenient, LCD display provides microscope information, at a glance. There are more humanized Settings such as focusing speed adjustment, magnification switching speed adjustment, Z-axis limit, sample replacement lifting function, etc., to adapt to the use of different operators.

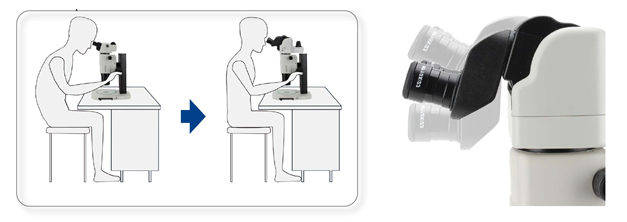

TILT VIEWING HEAD

The trinocular viewing head can realize the adjustment of interpupillary distance and diopter, and the baseline eye height can be increased by 47mm. Optional tilt trinocular viewing head, tilt range 0-30°, so that you can observe in the most natural and comfortable position.

EYEPIECE

A variety of magnification eyepieces are available, all with adjustable visibility, ensuring clear eyepiece imaging for all users.

VIEWING HEAD

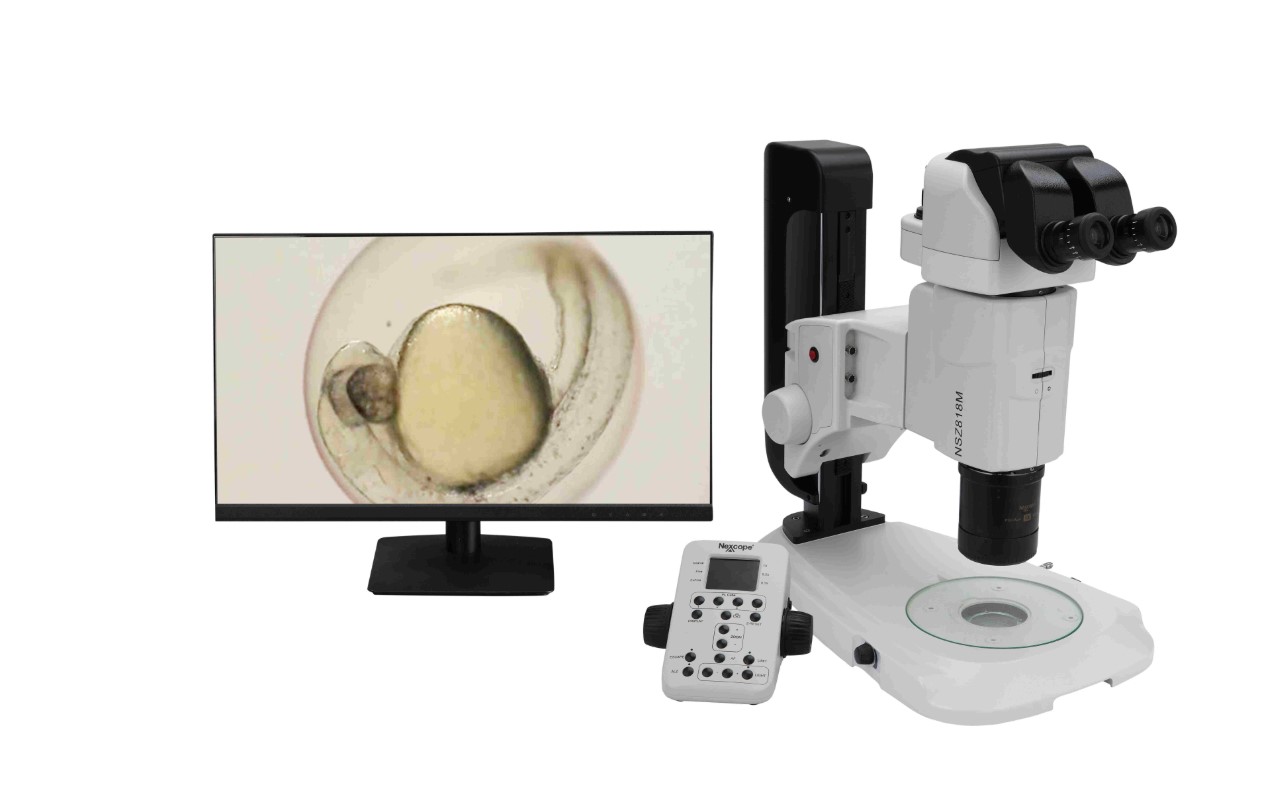

Two ergonomic viewing heads are available, the conventional viewing head interpupillary distance adjustable , and the tilt viewing head can be adjusted 0-30°. Both viewing heads can be connected to the camera through the C mount for digital observation.

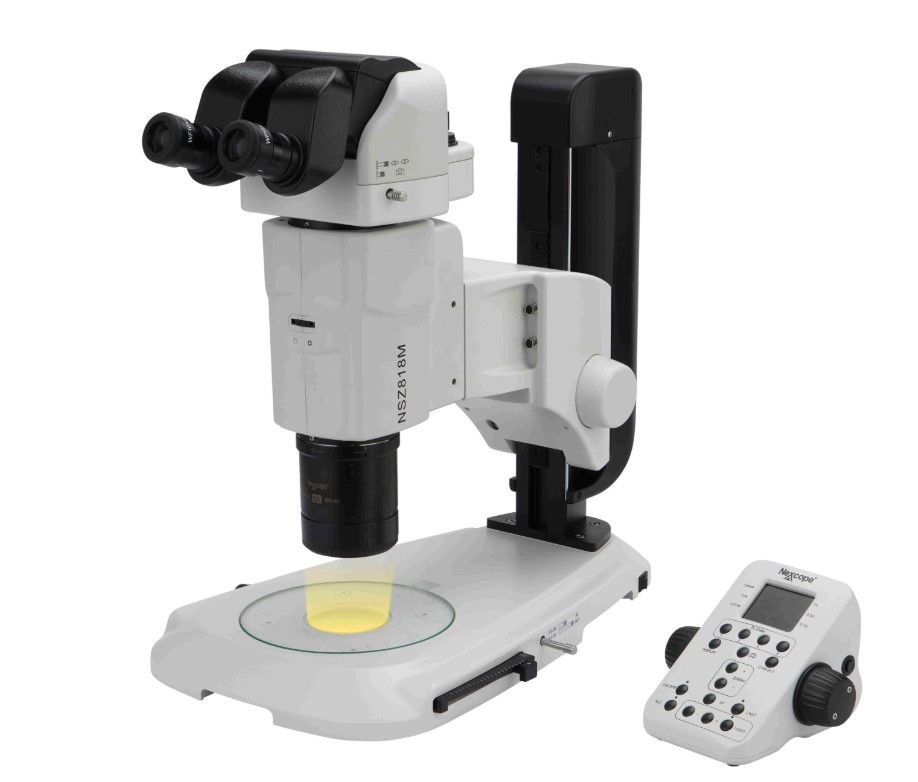

MOTORIZED PARTS

Can achieve a variety of motorized control functions, LCD display provides microscope information, operation at a glance, more user-friendly Settings, adapt to the use of different operators habits.

FIBER OPTIC ILLUMINATION

The flexible fiber arms can be adjusted according to the observation needs, changing the lighting direction and Angle, presenting the best imaging contrast and effect.

OIC ILLUMINATION

The built-in OIC lighting device in the base, can slide the operating lever on the side to change the lower lighting to oblique lighting, enhancing the contrast of the colorless, transparent sample surface.

COAXIAL ILLUMINATION

Provides more uniform illumination than traditional light sources, suitable for the surface scattering phenomenon is strong, or thicker and surface texture of the sample, to obtain stronger image contrast and clarity

RING LED ILLUMINATION

High brightness LED illuminator, service life of up to 10,000 hours, light intensity can be adjusted, cost-effective preferred. Can be used for edge detection, suitable for small uneven surface defect detection.

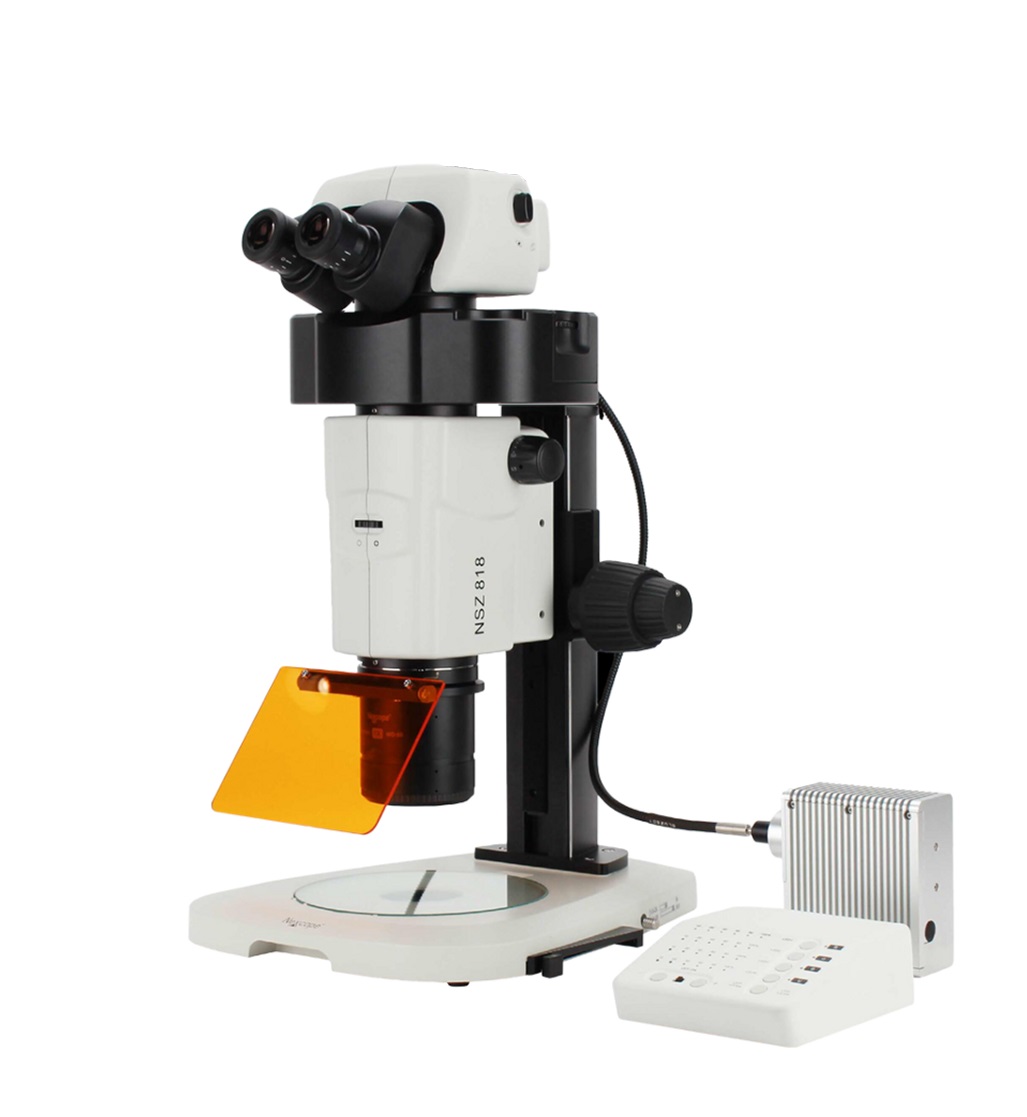

INCIDENT FLUORESCENT

With long-life, high-brightness LED fluorescent lighting, the compound eye lens guarantees uniform illumination even in the low power field of view, high transmittance, high end depth,

and high gradient color filters for excellent signal-to-noise ratio and clear fluorescent images
