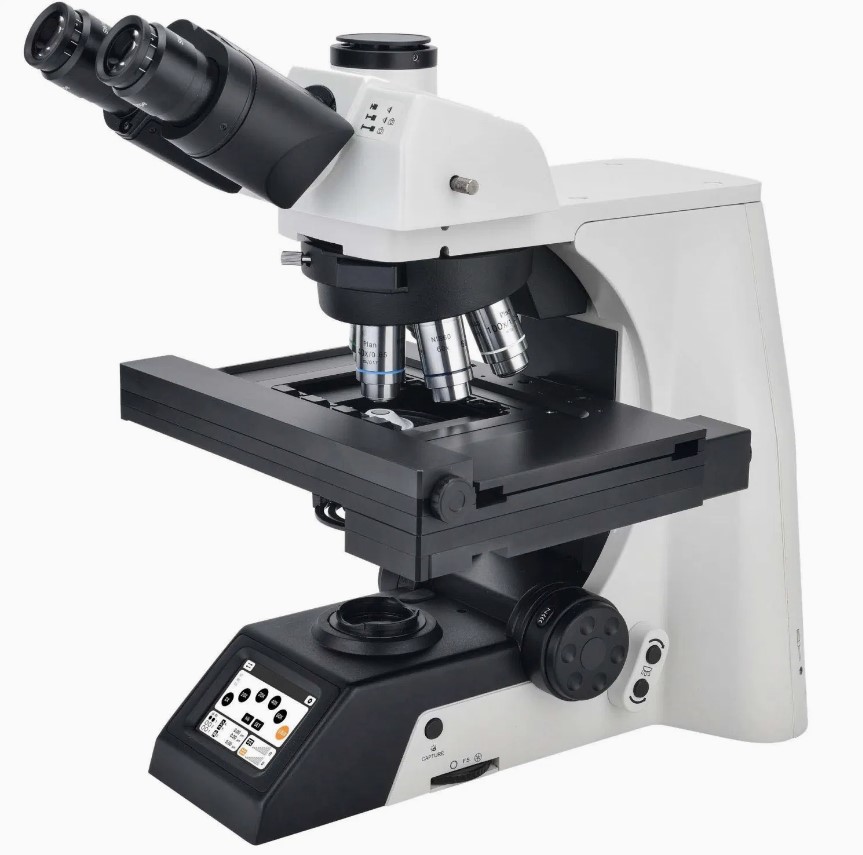

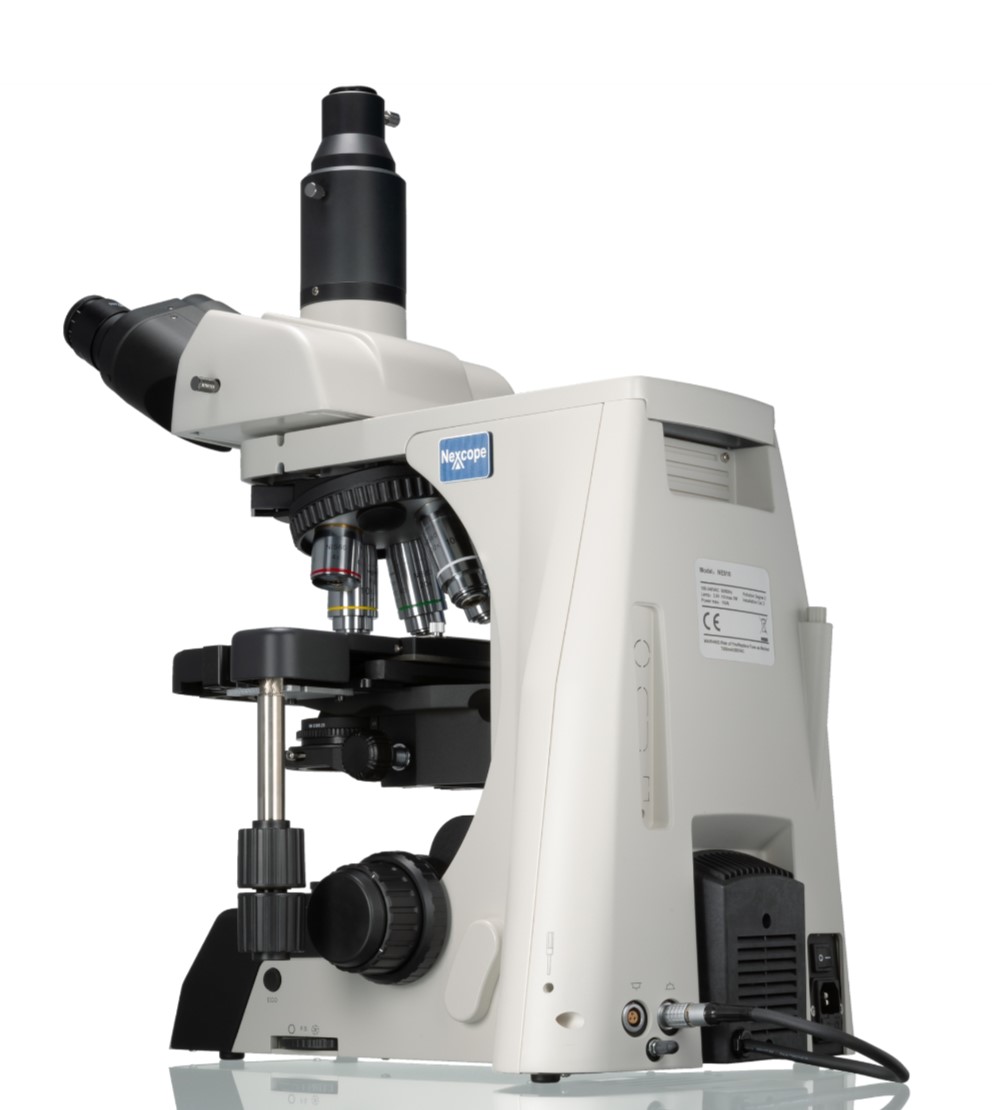

NEXCOPE NE950

FULLY AUTOMATIC PROFESSIONAL LABORATORY MICROSCOPE

Fully motorized and capable of operating with minimal operator intervention, NEXCOPE NE950 is equipped with high technology for research laboratories or routine tasks.

NEXCOPE NE950 offers excellent optical performance and ease of use, making it ideal for scientific research. It is an excellent laboratory microscope for life sciences, histology, microbiology and comes with an attractive price tag.

NEXCOPE NE900 Series adopts NIS infinity correction optical system, which has been R&D for a long time, This optical system has optical qualities such as long working distance and excellent chromatic aberration correction ability.

Planachromatic infinity lenses provide a flat field of view. Together with the swing-out condenser (NA 0.9/0.25), the lenses offer high contrast and high resolution across the entire visible spectrum. The turret can carry six lenses and is equipped with five lenses as standard (4x, 10x, 20x, 40x, 100x oil). These have an M25 thread and a parfocal length of 60 mm. The 40x lens has a spring-loaded protection mechanism.

The eyepiece's wide 25mm field of view allows you to view a very wide area. -5 to +5 diopter adjustments can be made for each eyepiece. The interpupillary distance can be adjusted between 47 mm and 78 mm.

The powerful 3W LED has adjustable brightness and provides optimum illumination with excellent color reproduction. The color temperature remains constant when the light is dimmed. The light is equipped with an Eco sensor that turns the light off when not in use. The swing-out capacitor with iris diaphragm can be adjusted and Köhler adjusted with the light source also equipped with an iris diaphragm. You can adjust the aperture at any time according to the selected lens. The auxiliary lens can be pulled out to quickly change the aperture from 0.9 to 0.25, for example to examine the sample. This ensures efficient and repeatable results. Frosted and neutral density filters can be moved into the beam path with the press of a button, providing optimum illumination/brightness adjustment without operating a dimmer.

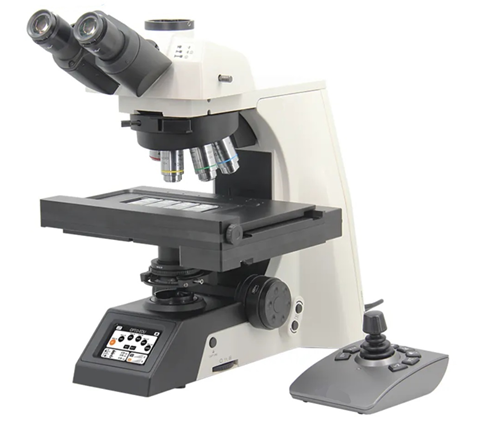

FULL AUTOMATIC X-Y-Z MOTORIZED STAGE

Motorized stage with 4 slide capacity

AUTOMATIC SWING-OUT CONDENSER

NA0.9/0.25 Automatic swing-out condenser

AUTOFOCUS

Focusing works independently on both sides, different focusing speeds can be adjusted respectively, practical light adjustment knobs are ergonomically placed.

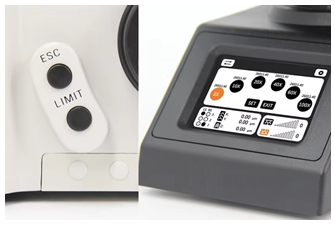

TOUCH SCREEN

Focusing, lighting control, changing lenses and many other motorized operations can be performed via the screen.

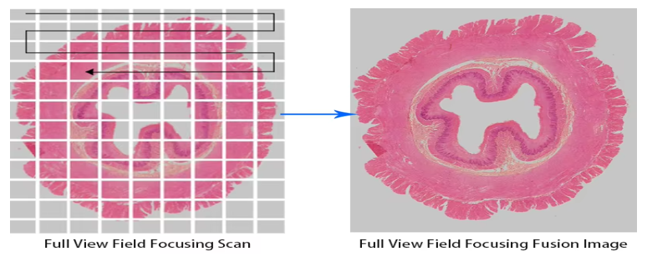

AUTOMATIC AREA SCANNING

LIGHT INTENSITY MANAGEMENT

Different lenses require different light intensity, NEXCOPE NE930 can intelligently remember the preset light intensity for each lens. It automatically adjusts the ideal light intensity with each lens change.

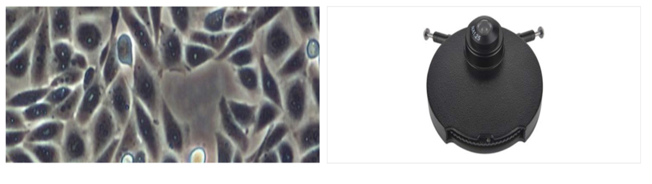

PHASE CONTRAST

You can obtain high-contrast images with neutral background colors regardless of the magnification range. NEXCOPE NE 900 allows tissues to be observed without staining in this observation method.

POLARIZATION

It is very suitable for examining birefringent samples. Collagen, starch protein, crystal, liquid crystal or plastic glass.

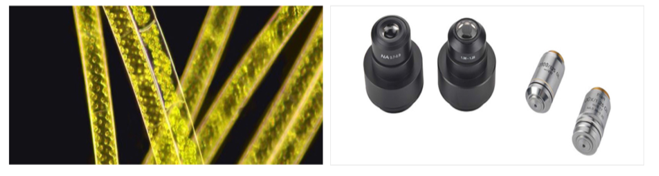

DARK FIELD

It provides oblique illumination by preventing light from falling perpendicularly to the sample to be examined.

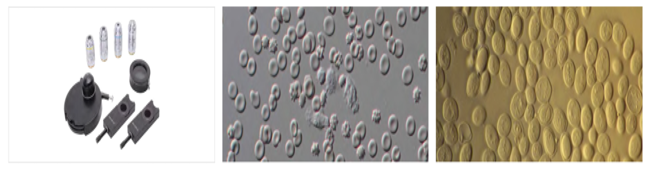

DIFFERENTIAL INTERFERENCE CONTRAST (DIC)

It allows three-dimensional views of large organisms such as nuclei and mitochondria by increasing contrast, and is used for micromanipulation in biotechnology such as gene injection, nuclear transfer and transformation.
