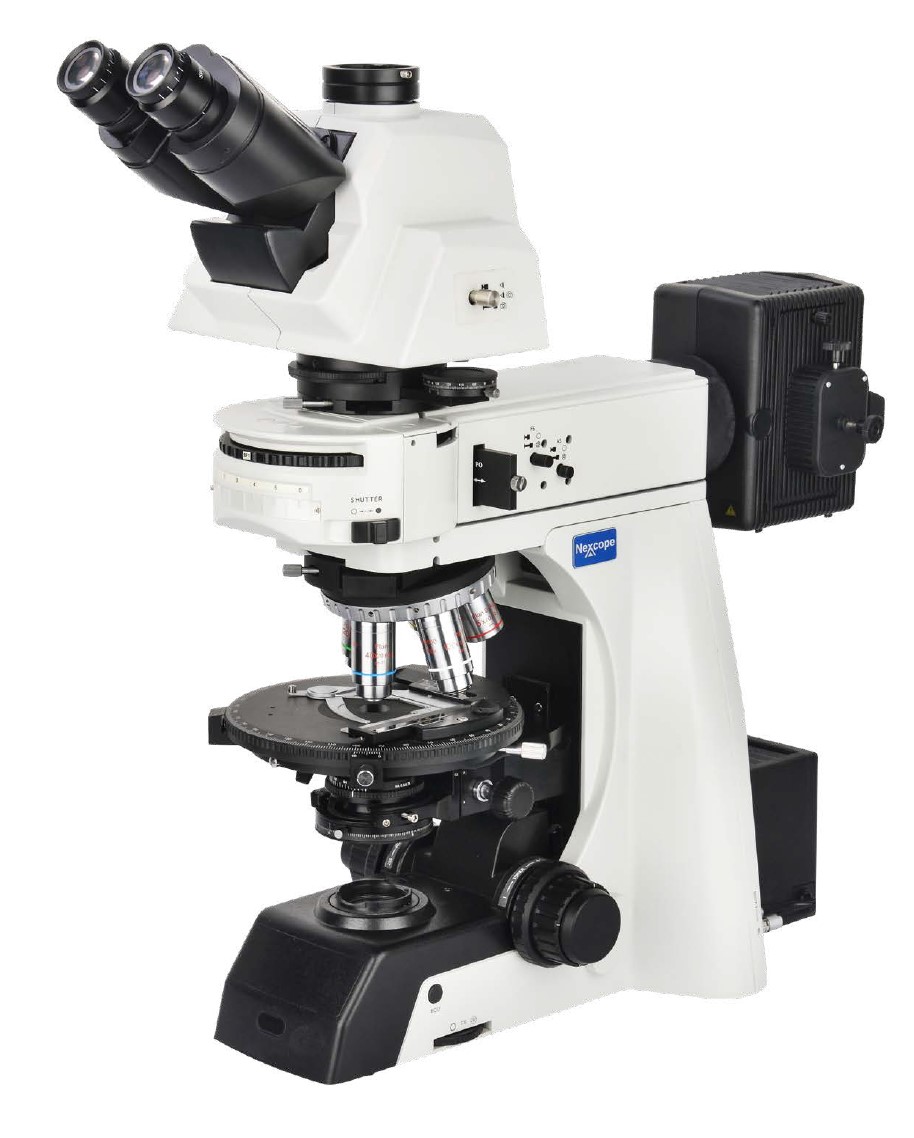

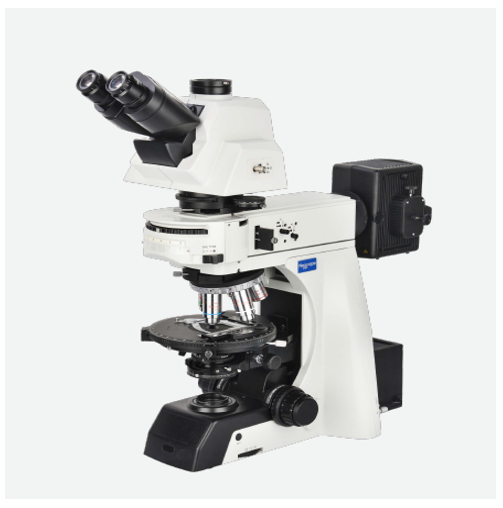

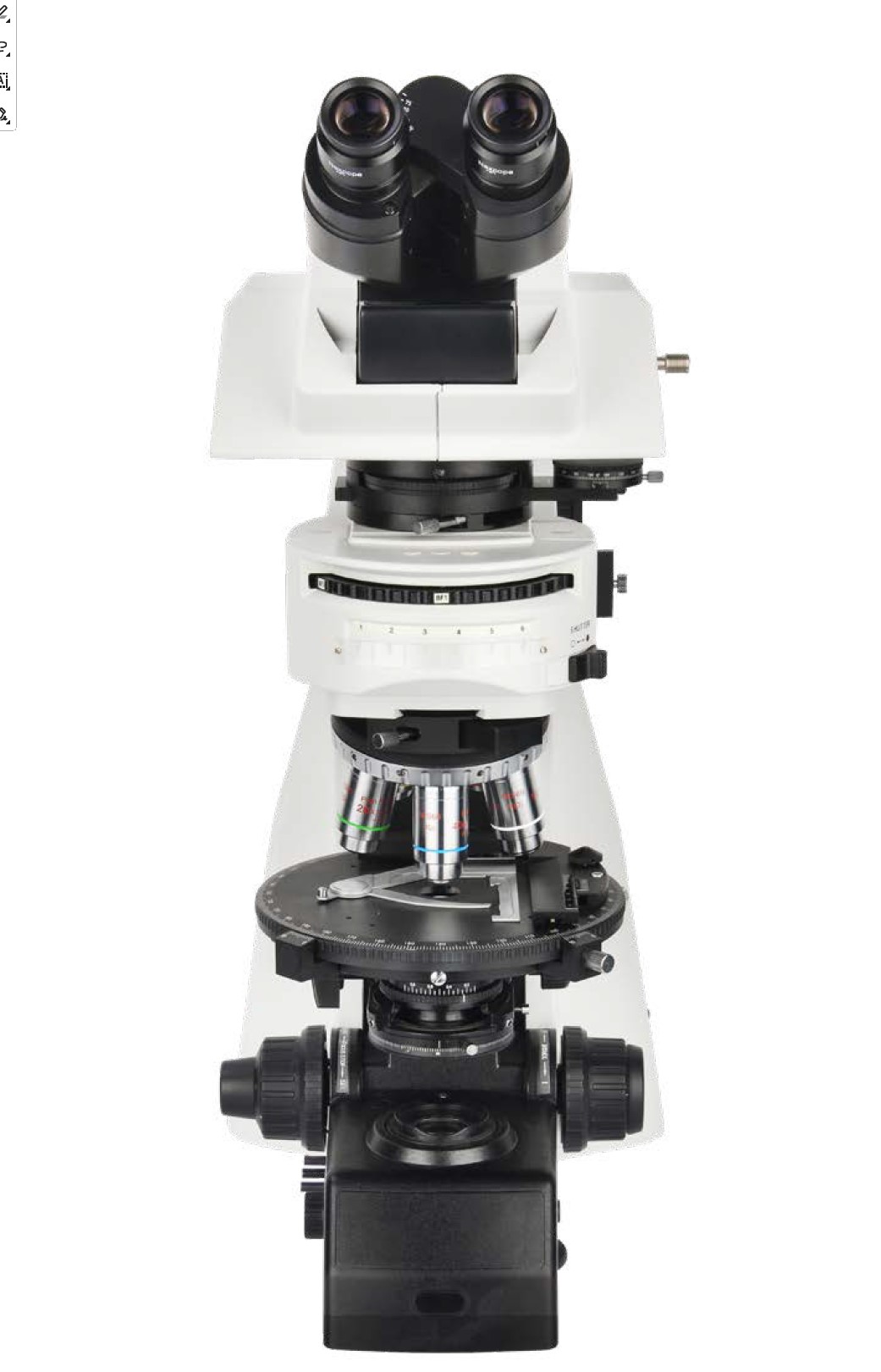

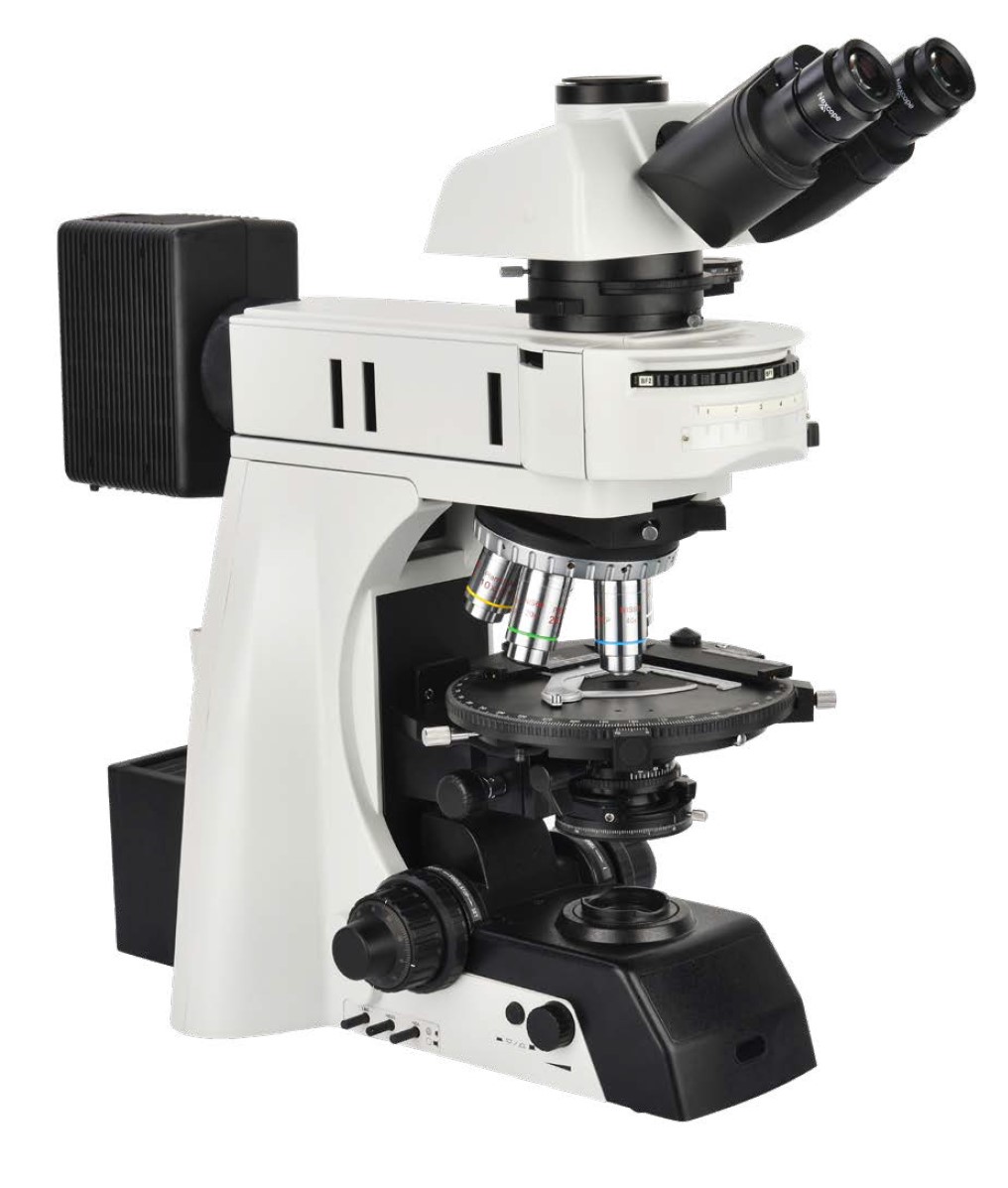

NEXCOPE NP900

POLARIZED RESEARCH MICROSCOPE

NP900,  Research Type Polarizing Microscope with Wide Application Range and High Reliability

Conventional polarized microscopes are used in geology, mineralogy, metallography and geological investigations. However, as the diversity of fields deepens, polarization microscopes are in demand in more and more fields, including industrial fields such as architecture, materials analysis, semiconductor manufacturing and detection, as well as natural science fields such as forensics, biological research and medicine. At the same time, the application scope and scalability of the microscope should be higher, and specialized microscopes with higher image clarity, better contrast and higher efficiency are needed. The polarizing microscope NP900 is powerful and useful. It can perform many types of observations and provides excellent optical imaging quality.

KÖHLER LIGHTING SYSTEM

Kohler illumination is considered an excellent microillumination system capable of providing uniform, bright illumination across the entire field of view and is key to digital microscope imaging. Based on this, standard illumination with a halogen lamp (LED illumination optional) can make microscope imaging more realistic and the results are quite consistent.

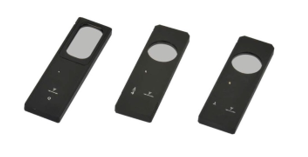

VARIOUS COMPENSATORS

Various optical correctors are provided with the NP900 to enhance the signal of weakly birefringent materials for easier imaging. At the same time, the compensator can also be used for qualitative measurements to determine various horizontal delays.

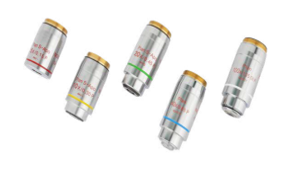

STRAIN-FREE OPTICAL SYSTEM

As polarization research progresses, data becomes increasingly demanding in terms of accuracy and reproducibility. As important components of the microscope, the objective lens and condenser lens play an important role in the imaging effect. Polarizing microscopy not only requires high resolution, but also distortion-free optics, ensuring that the observed birefringence comes from the sample without distortion through the optical components.

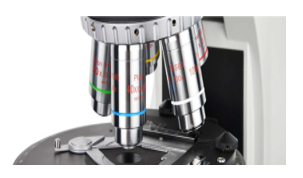

CENTER ADJUSTABLE QUINTUPLE NOSEPIECE

Up to five objectives can be mounted and all objectives positions areVcenterable. The nosepiece can be equipped with 6 objectives with different magnification rates to obtain abundant sample information.

HIGH PRECISION REVOLVING ROUND STAGE

The NP900 platter is large, preset, and has click stops in 45-degree increments. The dual sample holder can be easily mounted on the rotating carrier stage for easy sample transfer and fine manipulation.

INTERMEDIATE TUBE

The intermediate tube contains a Bertrand lens as standard, enabling both conoscopic and orthoscopic observation. Noisy images are eliminated precisely and quickly. The high-precision slide-type 360° rotatable analyzer provides unparalleled image performance and contrast with its precise vernier scale.

COMPENSATOR SLOT

NP900 has a standard compensator mount. Therefore, signals from weakly birefringent materials Various correctors can be used to further improve their quantitative measurements.

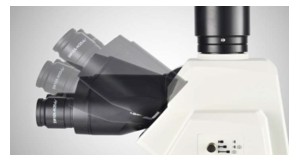

SEIDENTOPF TRINOCULAR OBSERVATION HEAD

Its adjustable ergonomic head allows you to work in a more comfortable position. Minimizes muscle tension and discomfort caused by long-term use.

ROTATABLE TOP LIGHTING BLOCK

Up to 6 observation modules can be placed on the rotating disk. It is easy to use and increases work efficiency with one touch.

ECO-FRIENDLY FEATURES

The lower light turns off automatically 30 minutes after you leave the room. It not only saves energy but also extends lamp life.
