FLUORESCENT SLIDE SCANNER

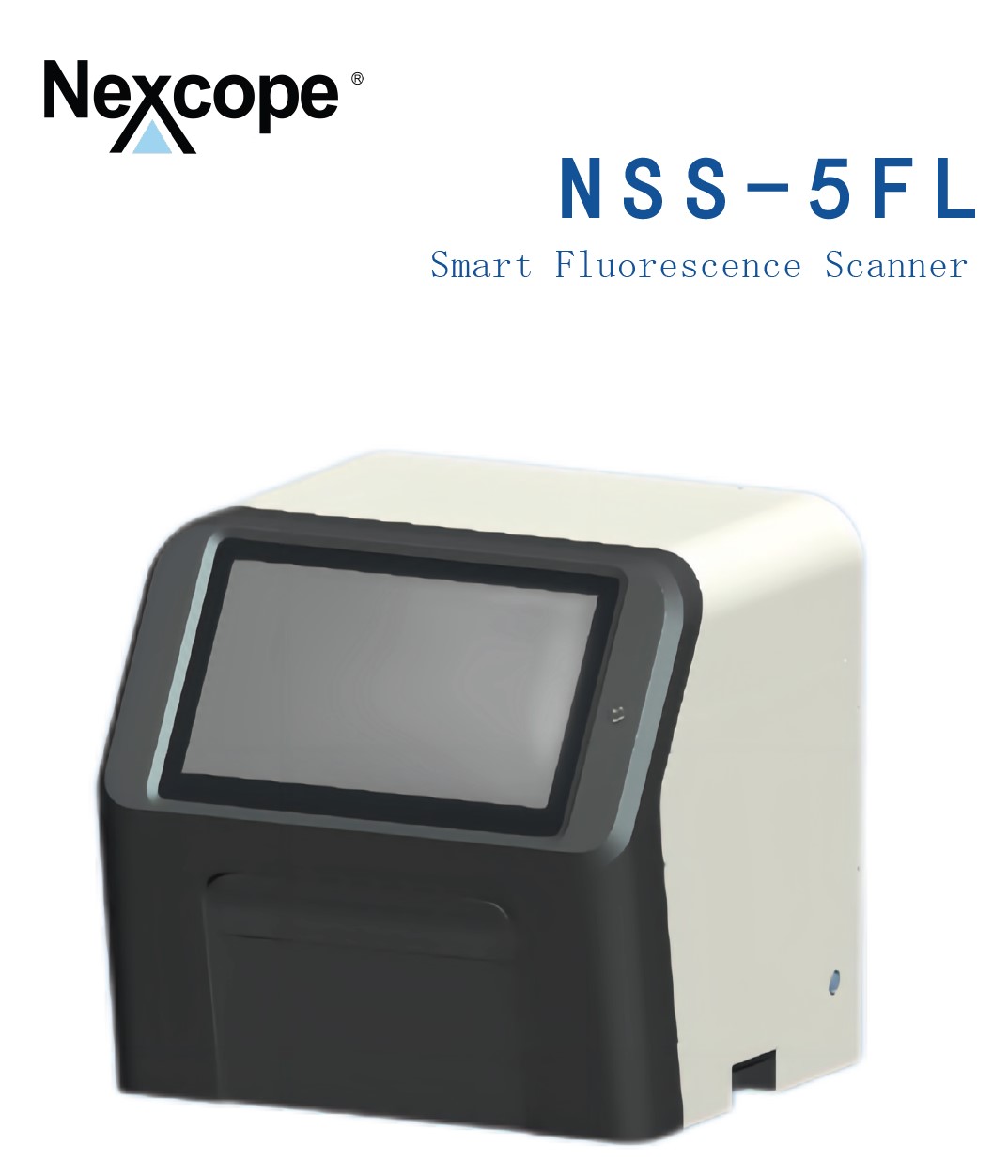

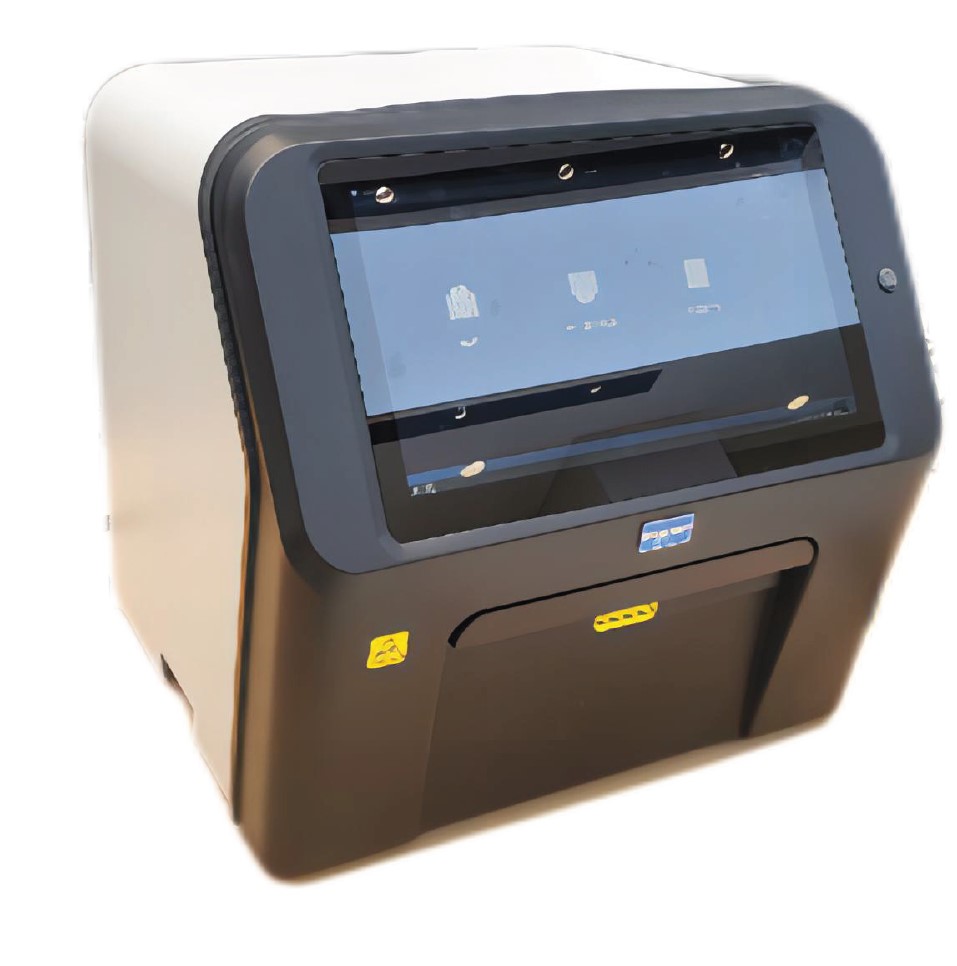

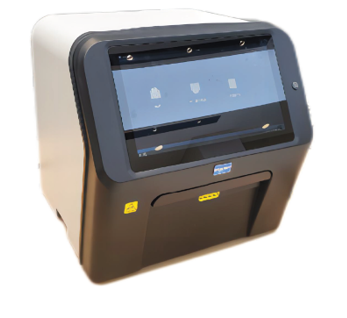

NEXCOPE NSS-5FL Fluorescent Integrated Workstation

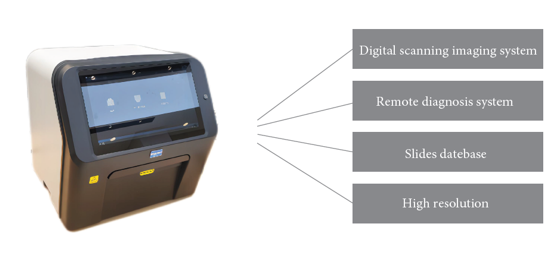

Built-in integrated workstation,
provides one-click scanning capabilities, fluorescence image acquisition, slice creation, storage and management.
MULTI-REGIONAL EXPERT CONSULTANCY
MEDICAL CONFERENCES AND EDUCATION

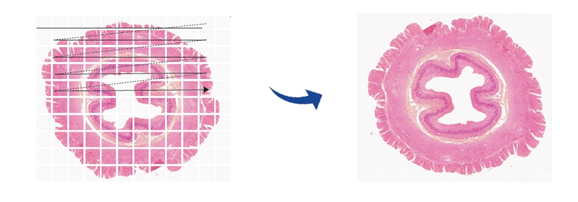

COMBINE MANY PHOTOS
SMALL SIZE COMPATIBLE WITH VARIOUS IMAGING SYSTEMS
SEMI APOCHROMATIC OBJECTIVE LENS
- Depending on application requirements, including semi-apochromatic and advanced apochromatic lenses various lenses can be selected.
- The standard semi-apochromatic objective lens has a wide numerical aperture providing high-resolution images from ultraviolet to infrared.
- This microscope's unique nano-hard multilayer coating technology significantly increases the transmittance of the objective lens provides the highest quality imaging.
- Optical resolutions of 2X 0.67μm, 20X 0.67μm and 40X 0.45μm can be achieved.

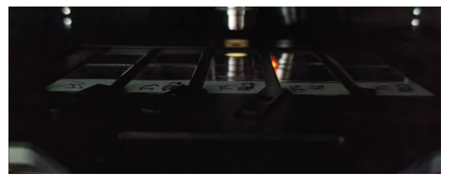

MULTIPLE SLIDE TRAY
The large microscope stage allows a variety of movements. The X-axis is 160 mm and the Y-axis is 76 mm. Five slides are placed simultaneously to complete a continuous fluorescence scan.
MOTORIZED SMART COMPONENTS
The scanner is equipped with various motorized components.
Precise Z-axis control in addition to the XY motorized stage enables ultimate and accurate Z focus compositing and EDF imaging.
Motorized rear 5x objective lens ensures accurate positioning with smooth transition.
The four-motor fluorescence turntable enables rapid switching and multi-channel sequential fluorescence scanning.
